  • Product Name: Vortex Mixer
  • Release time: 2024-3-11 19:20:34
  • Company Feature:
  • TOPSCIEN is a leading provider of OEM or Original Equipment Manufacture liquid handling solutions. Thanks to our know-how and experience, we can take care of the whole process from engineering concept to dispatch.We have developed different technologies that can be applied to custom-made pipetting solutions. These include both electronic and mechanical pipette platforms. As a customer you can rest assured: Topscien 's solutions allow you to improve not only the safety and reliability, but also the ease-of-use of your liquid handling system.

    In many applications, such as diagnostic test and analysis systems, the accuracy of the results and reliability of the system are mission-critical. This requires a lot from all components of the system including the pipette. Topscien places great emphasis on the accuracy , precision, safety and user-friendliness of its products. Its application-specific solutions have been carefully manufactured in accordance with international quality standards.

    Custom-made for your needs

    The Start electronic and mechanical pipettes, as well as the new dispenser module families are easy-to-adapt platforms for your liquid handling system. For more specific needs, Topscien offers tailored solutions based on any of its pipettes.

    To learn more about Topscien’s OEM solutions, contact us.wilsonw@topscien.com

Vortex Mixer

This product is high speed small oscillator, is suitable for tube、centrifuge tube and ELISA plates oscillation

Feature

  • Compact structure designing, low center of gravity provide the stable operation when high speed .

  • Use the DC Brushless Motor, long-life, low noiseThe motor drive directly, no belt loss.

  • induction and variable frequency motor (without beltwork)

  • All the fixture,the instrument will distinguish automatic,speed limit automatic

  • Chuck installing more conveniently.

  • Inching feature and consecutive operation, easy for switching.

  • Centric balance piece designing, amplitude can be achieved 4.5mm ,nice oscillation effects.

  • Metal hull, reliable and strong .

  • Timing function ,also can be countdown and digital showing .

  • Digital show the setting speed and operation speed , easy and clearly.

  • All the fixture can be inching feature and consecutive operation, suited to the lab requirement.

Technical Data

       Model
TVM-A7
TVM-A8
Oscillation Mode
circumferential
circumferential
 Turnaround diameter
4.5mm
4.5mm
Speed range
200-3000rpm/min,stepless speed regulating
200-3000rpm/min,stepless speed regulating
Voltage
100~240V
100~240V
Maximum Load
1.0kg
1.0kg
maximum Load
All the fixture will be distinguished automatic, speed limit automatic , security and reliable, easy for operation
All the fixture will be distinguished automatic, speed limit automatic , security and reliable, easy for operation
Timing functions and showing
1s-999min
                       Timing function,also can be countdown and digital showing
1s-999min
                       Timing function,also can be countdown and digital showing
Speed setting and showing
Simulation setting and
               digital time showing
0-3000rpm,Real-time digital showing for Speed and time
Driving
induction and variable frequency motor (without beltwork)
induction and variable frequency motor (without beltwork)
Motor input power
20W
20W
Motor output power
15W
15W
Operator schema
inching feature and conscutive operation
inching feature and conscutive operation
Dimension(MM)
210×150×69
210×150×69
Weight
4kg
4kg
  Protection class
IP 21
IP 21
Standard configuration
V1.1 / Standard gasket
V1.1 / Standard gasket
Adaptive fixture

               Standard gasket,ELISA plate fixture,univeral fixture (flask,tube,Centrifuge tube)

Standard gasket,ELISA plate fixture,univeral fixture (flask,tube,Centrifuge tube)

Order information

Code No
Part name and model
Specilfication
8011250
TVM-A7
Simulation setting and digital time showing
8011251
TVM-A8
Real-time digital showing for Speed and time
8011250-1
TVM-A8-1

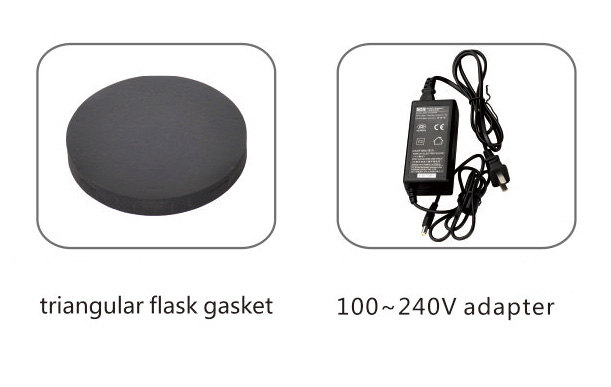

Standard gasket.use for setting tube which the diameter no more than 65mm smaller container,triangular flask gasket:0/200-3000rpm
8011250-2
TVM-A8-2

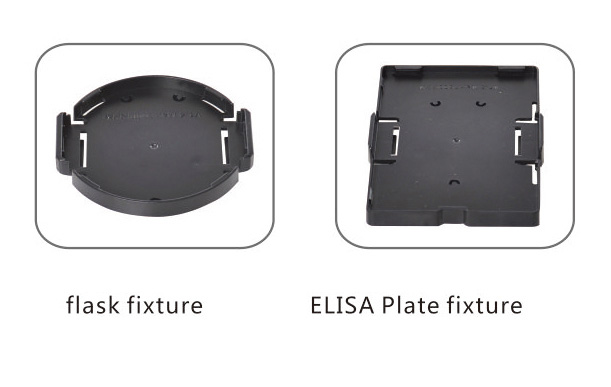

ELISA Plat fixture.Use for,ELISA Plate and square adapter.Speed range:0/200-1500rpm
8011250-3
TVM-A8-3
Flacks fixture.Together with Flasks gaskets,Speed range:0/200-3000rpm
8011250-4
TVM-A8-4
100-240V adapter
8011250-5
TVM-A8-5
Flasks gasket fixture
8011250-6
TVM-A8-6

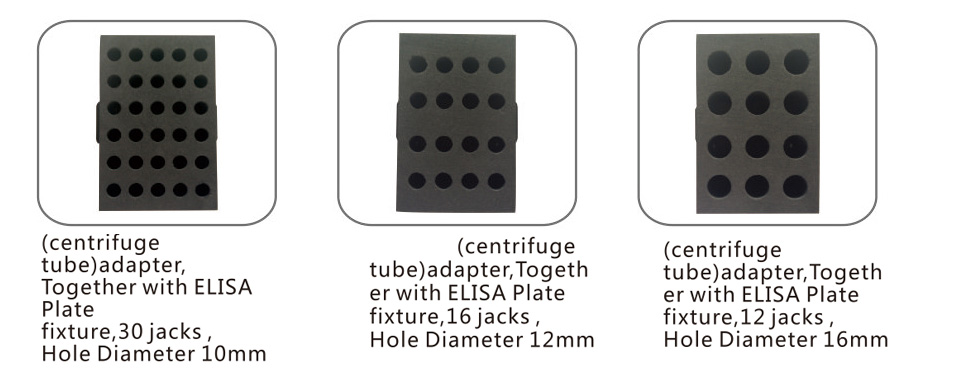

(centrifuge tube)adapter,Together with ELISA Plate fixture,30 jacks,Hole Diameter 10mm
8011250-7
TVM-A8-7
(centrifuge tube)adapter,Together with ELISA Plate fixture,16 jacks,Hole Diameter 12mm
8011250-8
TVM-A8-8
(centrifuge tube)adapter,Together with ELISA Plate fixture,12 jacks,Hole Diameter 16mm
