  • Product Name: ECOASPIR Aspirator
  • Release time: 2024-10-8 10:58:57
  • Company Feature:
  • TOPSCIEN is a leading provider of OEM or Original Equipment Manufacture liquid handling solutions. Thanks to our know-how and experience, we can take care of the whole process from engineering concept to dispatch.We have developed different technologies that can be applied to custom-made pipetting solutions. These include both electronic and mechanical pipette platforms. As a customer you can rest assured: Topscien 's solutions allow you to improve not only the safety and reliability, but also the ease-of-use of your liquid handling system.

    In many applications, such as diagnostic test and analysis systems, the accuracy of the results and reliability of the system are mission-critical. This requires a lot from all components of the system including the pipette. Topscien places great emphasis on the accuracy , precision, safety and user-friendliness of its products. Its application-specific solutions have been carefully manufactured in accordance with international quality standards.

    Custom-made for your needs

    The Start electronic and mechanical pipettes, as well as the new dispenser module families are easy-to-adapt platforms for your liquid handling system. For more specific needs, Topscien offers tailored solutions based on any of its pipettes.

    To learn more about Topscien’s OEM solutions, contact us.wilsonw@topscien.com

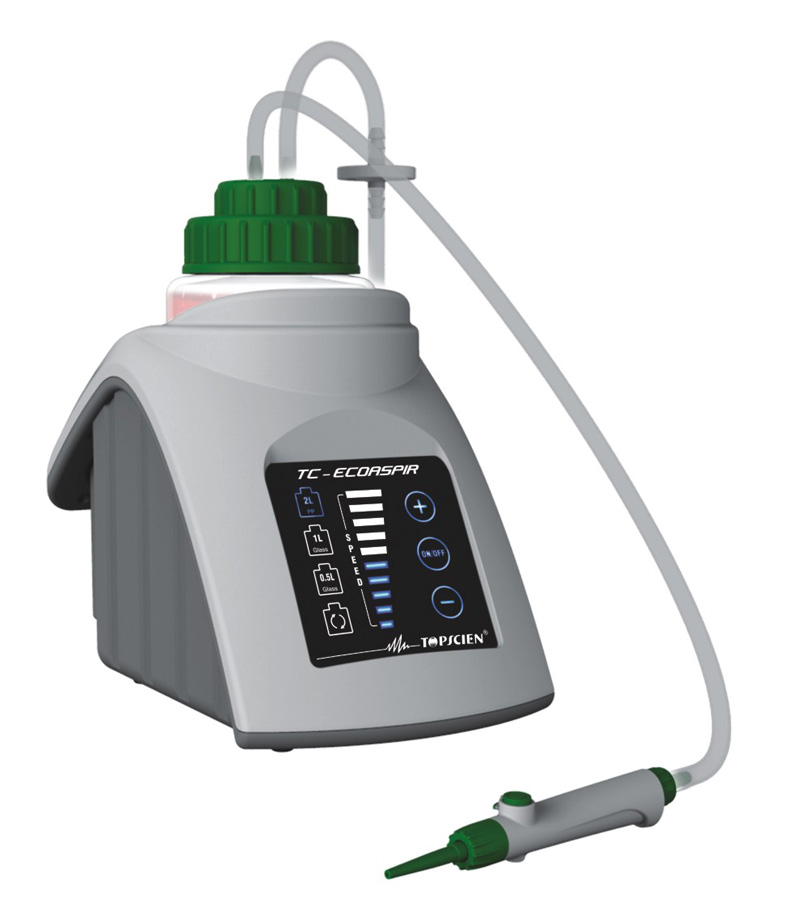

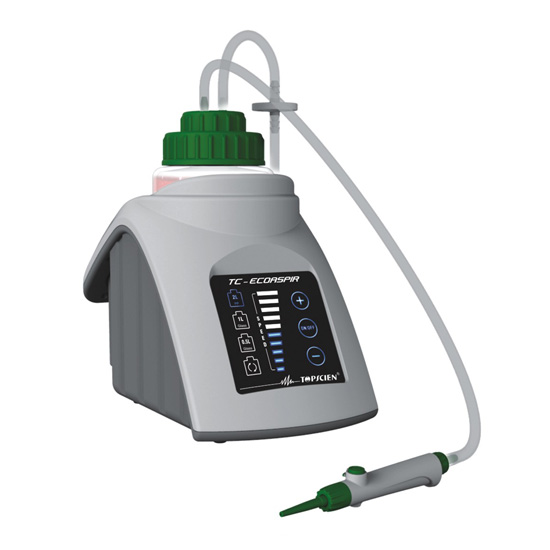

ECOASPIR Aspirator

providing outstanding levels of comfort and safety for working with biological and biohazardous materials .A non-contact sensor monitors the liquid level in the collection bottle electronically and prevents overfilling.The vacuum level – and thus the suction force- is exactly adjustable by the electronic touch panel and allows a sensitive and reproducible operation. It is an ideal choice for a wide range of laboratory aspirating applications,

Feature

  • Compact Design

  • Built-in Vacuum Pump.

  • Adjustable Vacuum Pressure.

  • Fsafe and Precise Aspiration.

  • Non-contact sensor for monitoring of the liquid level

Technical Data

Technical Data
Technical data
Aspiration Rate
14ml/sec
Vacuum Range
-30mbar to-750mbar
Vacuum Pump
Oil Free, piston pump
Dimensions (L X W X H )
15x15x25cm
Weight
2.5kg
Electrical
115V-60Hz or 230V-50Hz

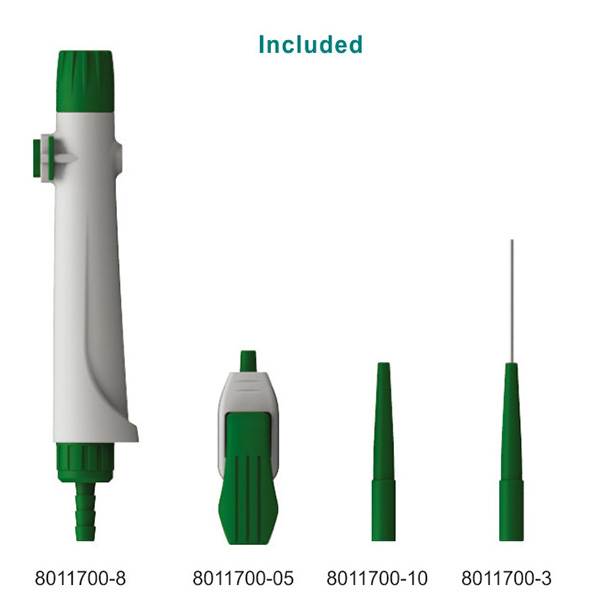

Comes complete with:

  • Base with internal vacuum pump

  • 2Liter, polycarbonate  collection bottle

  • Antibacterial / hydrophobic filter

  • Silicone tubing

  • Handheld vacuum controlier

  • Adapter for 200ml pipette tips

  • Adapter, fine stainless steel,40mm

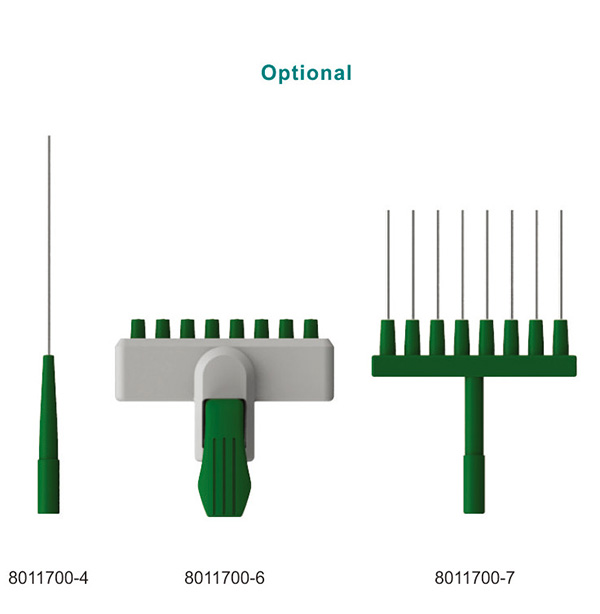

Order information

Cat.No.
Part.No.
Specification
8011700
FC-ECOASPIR
ECOASPIR Aspirator Includes base with internal vaccum pump,2L  polypropylene bottle ,handheld vaccum controller and single channel adapters ,silicon tubing,
8011700-1
ESP-B1L
1L glass bottle
8011700-2
ESP-B1/2L
0.5L glass bottle
8011700-3
ESP-1DS40
Single channel stainless steel fine tip (40mm)
8011700-4
ESP-1DS80
Single channel stainless steel fine tip (80mm)
8011700-5
ESP-1DT
Single channel adapter
8011700-6
ESP-8DT
Eight channel adapter for  200μl pipette tips
8011700-7
ESP-8DS
Eight channel stainless steel fine tip
8011700-8
ESP-HVC
Handheld vaccum controller
8011700-9
ESP-HF
AHydrophobic filter
8011700-10
ESP-FDP
Single channel fast tip
8011700-11
ESP-TB
Extra tubing, 1 meter
