TC-RefrigSpin Micro high speedrefrigerated centrifuge
TC-RefrigSpin micro-high-speed freezing centrifuge has the advantages ofpowerful function, high versatility, simple operation and so on. It adoptsadvanced control technology, reliable quality and superior performance. Itis widely used in medical laboratory, biochemical and molecular biologyresearch and routine analysis in industrial laboratory, genetic genes,protein nucleic acid. PCR products and other experimental studies aremore significant. A variety of rotors can be adapted to meet the needs ofdaily experiments.
Feature
Temperature control range: -20~+40 C.
The temperature can be maintained at -4 C /+4 C at the highest speed.
The pre-cooling function can be quick cooling the samples.
The setting temperature can be maintained continuously when centrifugalfunction is not used and the door cover is closed.
It has automatic standby function, optimizes the refrigeration effect andprolongs the service life of the compressor.

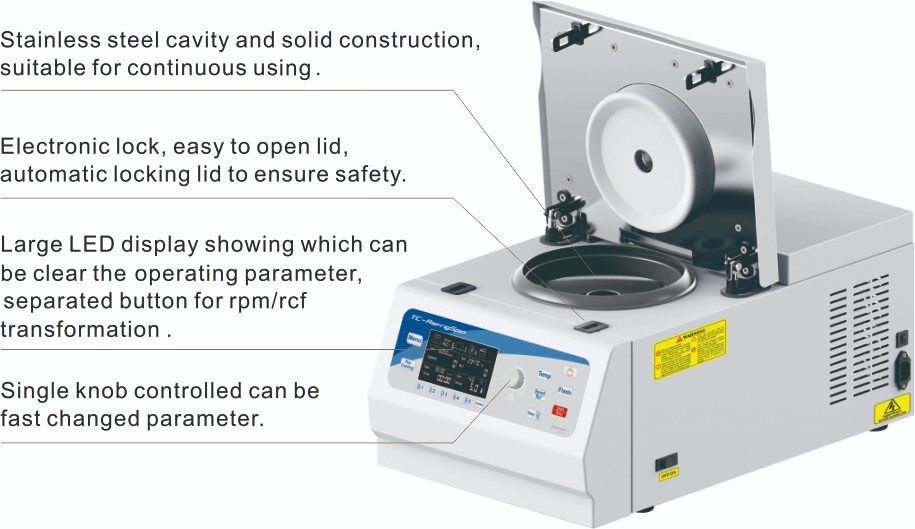

Stanless steel caviy, sold srucure, sutable for contnuous use, new and Imnnovatve automatic inhalation double lock, easy to open and cose machinecover, open and close machine cover quiet and safe.
Optimized imported 5 inch LCD high-brightness black-and-white LCD display, setting and operating parameters rea-time on-line clearItis equipped with automatic ID identifcation function of turning head to make the muti-tuming head high-speed mechine more safe and converient to usedoor cover protection, overspeed and unbalanced detection system. It can monitor the centrifugal process in real time, ensure the safe operation of theinstrument, prompt the sound signalat the end of operation. error and unbalance, and stop running at the same time. LCD displays the result codeEquipped with a sealed corner rotor equipped with rotor cover to prevent staff from being contaminated by samples.
Introduction
Advanced and reliable Infineon vector sine wave drive control systemcan accurately control the speed, time and relative centrifugal force.
The maintenance free brushless frequency conver-sion induction motor;is adopted. The speed range is 100 to 16000rpm, and the accuracy is10rpm.
The single flash instantaneous centrifugal button can be quickly andconveniently centrifuged by pressing down.
High-strength main engine and turning head mate-rials, can resistvarious chemical corrosion, with sealing performance and unlimitedhigh-temperature disinfection function, Teflon coated stainless steelcavity, excellent corrosion resistance, in-situ foaming, good insulationeffect; accidental power off cover opening device reliable andconvenient; cover with speed hole, easy to do speed monitoring MeetGMP requirements.
Ordeinformation

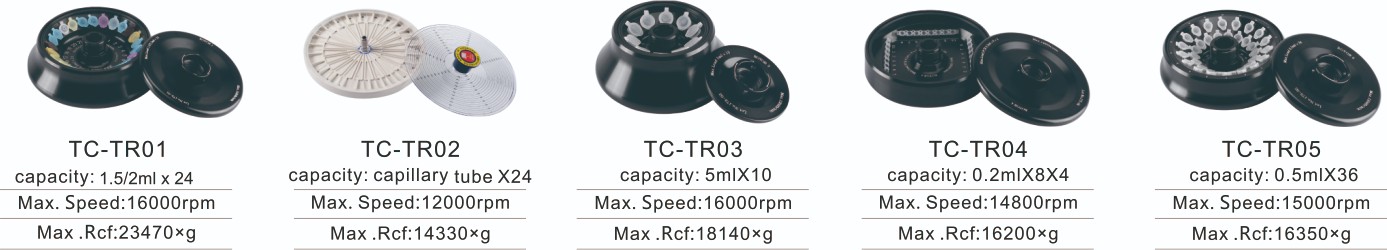

| Cat.No. | Cat.No. | Specification |
| 8011770 | TC-RefrigSpin | Refrigerant high speed centrifuge |
| 8011770-1 | TC-TR01 | 1.5/2ml x 24 microtube Angle rotor Max:16000 (rpm/min) |
| 8011770-2 | TC-TR02 | Capillary tube X24 Angle rotor Max: 12000 (rpm/min |
| 8011770-3 | TC-TR03 | 5mlx 10 EP centrifuge tube Angle rotor Max:16000 (rpm/min) |
| 8011770-4 | TC-TR04 | 0.2mlx 8 PCR stirp tube x 4Angle rotor Max: 14800 (rpm/min) |
| 8011770-5 | TC-TR05 | 0.5 x 36 microtubeAngle rotor Max: 15000 (rpm/min) |
