  • Product Name: S Series Multichannel Variable Volume Micropipettes
  • Release time: 2024-10-8 15:26:58
  • Company Feature:
  • TOPSCIEN is a leading provider of OEM or Original Equipment Manufacture liquid handling solutions. Thanks to our know-how and experience, we can take care of the whole process from engineering concept to dispatch.We have developed different technologies that can be applied to custom-made pipetting solutions. These include both electronic and mechanical pipette platforms. As a customer you can rest assured: Topscien 's solutions allow you to improve not only the safety and reliability, but also the ease-of-use of your liquid handling system.

    In many applications, such as diagnostic test and analysis systems, the accuracy of the results and reliability of the system are mission-critical. This requires a lot from all components of the system including the pipette. Topscien places great emphasis on the accuracy , precision, safety and user-friendliness of its products. Its application-specific solutions have been carefully manufactured in accordance with international quality standards.

    Custom-made for your needs

    The Start electronic and mechanical pipettes, as well as the new dispenser module families are easy-to-adapt platforms for your liquid handling system. For more specific needs, Topscien offers tailored solutions based on any of its pipettes.

    To learn more about Topscien’s OEM solutions, contact us.wilsonw@topscien.com

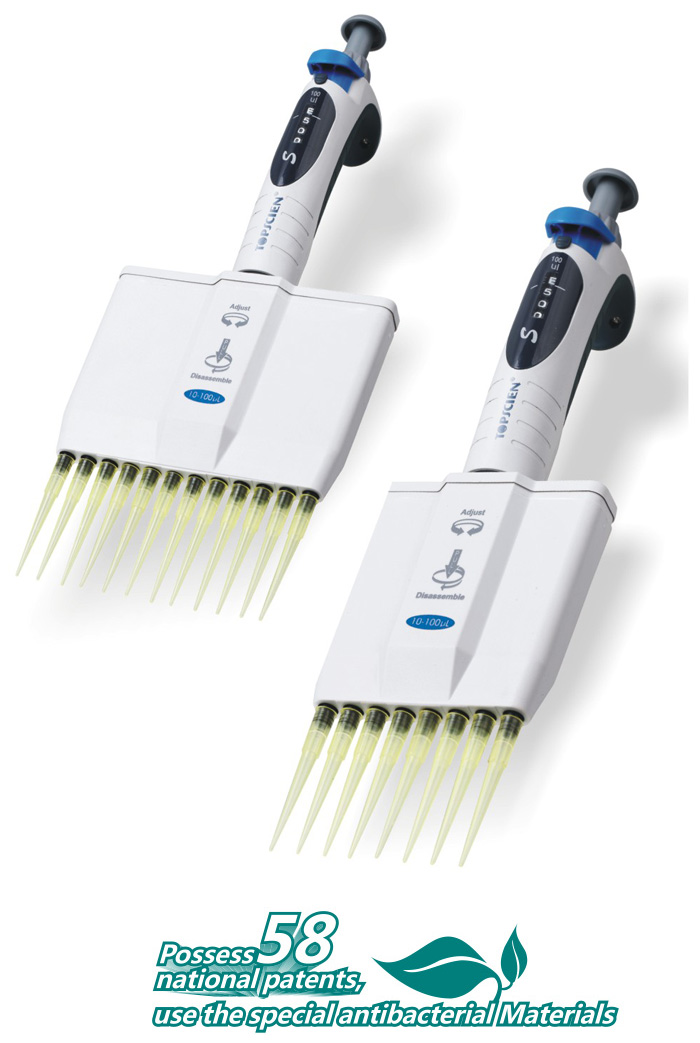

S Series Multichannel Variable Volume Micropipettes

Easy Handling

A particular advantage of the new multichannel pipette is the easy operation,e.g., when performimg serial pipetting of immunlilgical assays, while making serial dilutions or when filling 96-well plates for cell cultures. Use the innovative material will be more lighter. Pipetting easy and convenient. reduce the risk for hands injury when retitive pipetting. It can be operated comfortably whether large hands or small hands. The ergonomically finger rest takes the load off the hand, not need to grip the pipette tightly, so the pipetting operations can be completed with the fatigue. True one-hand operated. The one hand can be change the volume and fix the volume easily and conveniently. The large piptting button will be saved pipetting strength. Piston corrosion proof

Lightweight-Accurate-Low force

The piston-operated micrpipettes provides maximum versatility and optimum quality over the entire volume range. There are 5 different volume 8 and 12 chennels micropipette which the volume cover 0.5-300μl

Feature

  • The TOPSCIEN multichannel Micropipette have the light weight, operated with pipetting

  • strength and easily and conveniently.

  • Rotating dispensing head for optimal pipetting convenience.

  • Due to the optimized standard design for the tip cone which it can be compatible with a wide range hand of tips.

  • Large central pipetting button and separate ejection function

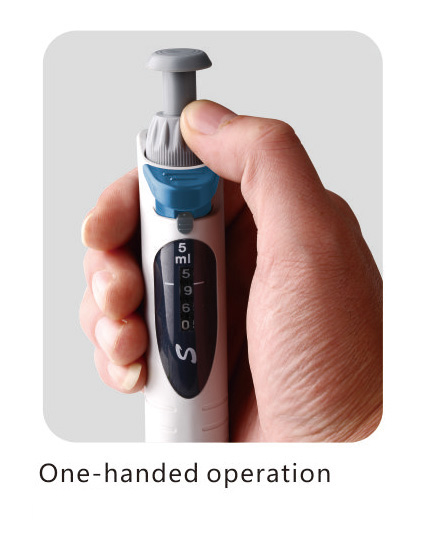

  • True one-handed operation for both right-and left-handers

  • Completely autoclavable at 121°C(20min)

  • Volume-change protection

  • 4-Position volume display, always clearly visible externally

  • Shor stroke of only 12.5mm to reduce the risk of RSI(Repetitve Strain Injury)

  • Corrosion-resistant piston and ejector Color-coded for easy selection of the right tip

  • CE-compliant

  • Individual shafts with seals with seals can be easily unscrewed for cleaning or replacing-eliminates expense and long outages.

Unique tip loading mechanism for perfect tip sealing and light tip ejection, Perfecttip sealing in multichannel micropipette.

  • Allows tips to be loaded with constant force

  • Enables even and safe tip sealing to the tip cones whith minimum force

  • Makes tip ejection light and easy

Details

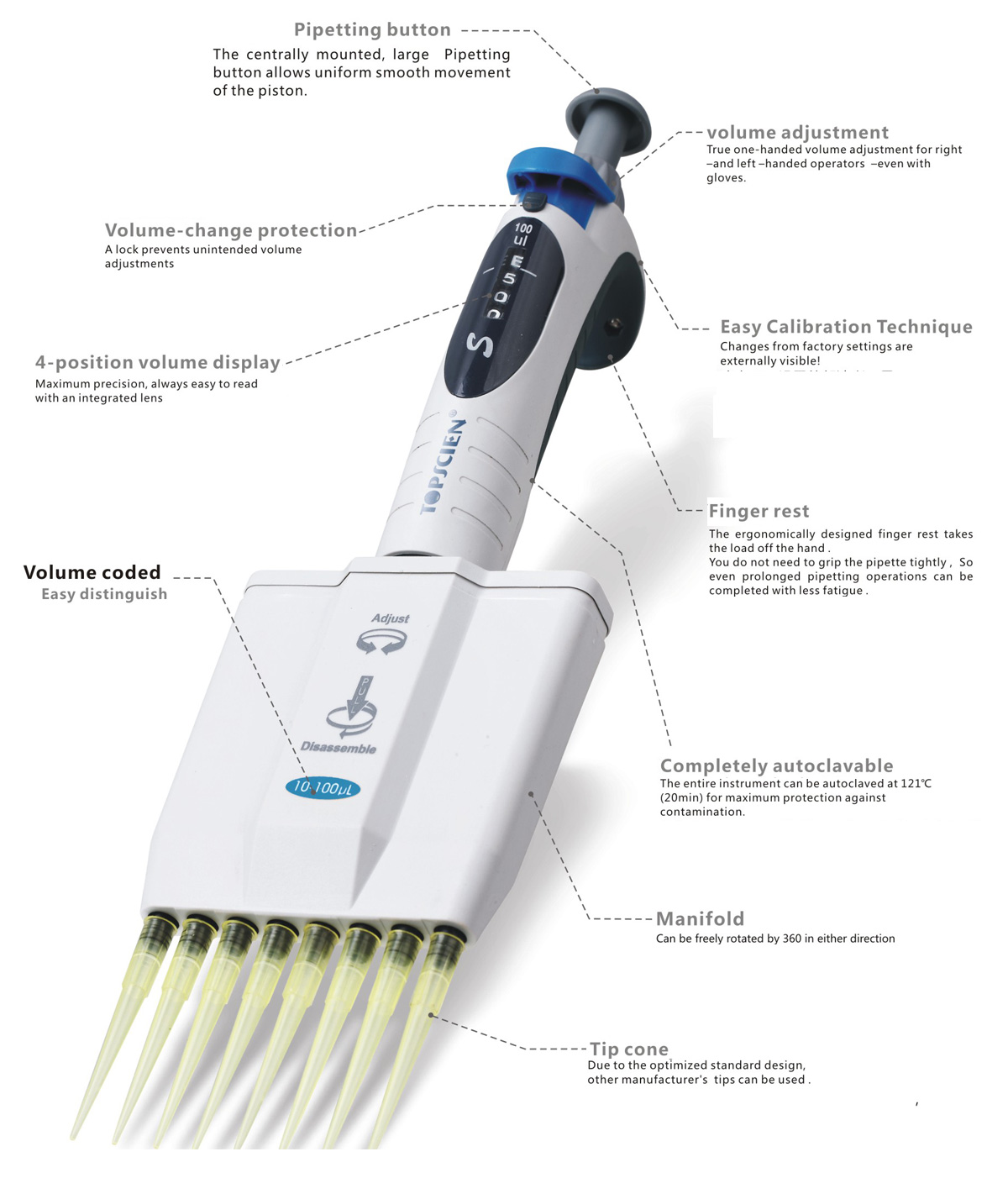

A central pipetting button, the one-handed operation, precise4-position volume settings a volume display that can be easily read by both right-and left-handed operators are only a few examples of the attention to detail in the design of the TOPSCIEN variable volume micropipette

S Series Variable Volume 8 Channel Micropipette(121℃ autoclavable)

Cat.No
Code. No.
Volume
Volume range
μl
Volume step
μl
A*≤±%
CV*≤%
Increment
μl
Type of tips
μl
8011460
TS8D10H
0.5-10
10/5/1
1.6/2/8
1.0/2/6
0.01
20
8011461
TS8D50H
5-50
50/25/5
0.8/1.4/6
0.4/0.8/3
0.05
200
8011462
TS8D100H
10-100
100/50/10
0.8/1.4/4
0.3/0.6/2
0.1
200/300
8011463
TS8D200H
20-200
200/100 /20
0.8/1.4/4
0.3/0.6/1.5
0.2
200/300
8011464
TS8D300H
30-300
300/150/30
0.6/1.2/3
0.3/0.6/1.5
0.3
300

S Series Variable Volume 12 Channel Micropipette(121℃ autoclavable)

Cat.No
Code. No.
Volume
Volume range
μl
Volume step
μl
A*≤±%
CV*≤%
Increment
μl
Type of tips
μl
8011480
TS12D10H
0.5-10
10/5/1
1.6/2/8
1.0/2/6
0.01
20
8011481
TS12D50H
5-50
50/25/5
0.8/1.4/6
0.4/0.8/3
0.05
200
8011482
TS12D100H
10-100
100/50/10
0.8/1.4/4
0.3/0.6/2
0.1
200/300
8011483
FSP12D200H
20-200
200/100 /20
0.8/1.4/4
0.3/0.6/1.5
0.2
200/300
8011484
TS12D300H
30-300
300/150/30
0.6/1.2/3
0.3/0.6/1.5
0.3
300

Calibrated to deliver (TD. Ex) Error limits according to the nominal capacity (=maximum volume) indicated on the instrument, obtained with instrument and distilled water at equilibrium with ambient temperature at 20℃,and with smooth, steady operation The error limits are within the limits of DIN EN IS0 8655-2. Conformity certified to DIN 12 600.A=Accuracy, CV =Coefficient of variation
